Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System

Product Categories

Zhejiang TongJiang Holdings Company

Contact Now

Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System

Name: Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System
Brand: TongJiang
Price: 1 USD

China Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System wholesale

Brand Name : TongJiang

Model Number : Duckbill Chcek Valve

Certification : ISO9001,BV,SGS

Place of Origin : CHINA

MOQ : 5 piece or as the requirment

Price : FOB CHINA USD100-5800 /PC

Payment Terms : Western Union, MoneyGram, L/C, T/T

Supply Ability : 10000PCS/MONTH as the specification

Delivery Time : 5-15 days

Packaging Details : Wooden cases

Duckbill Check Valve Material : Neoprene, Natural Rubber

Duckbill Check Valve Clamps Material : SS 316 Stainless Steel , Carbon Steel

Duckbill Check Valve Size Range : DN 50mm to 2800mm

Duckbill Check Valve Pressure Class : PN 1.0 Bar

Duckbill Check Valve Connection : GB, ANSI, DIN Flanged Ends

Duckbill Check Valve Application : Sewage , waste water

Contact Now

Viton Duckbill Check Valve Flanged Ends in Waste Water and Pipeline System

PRODUCT INTRODUCTION

1. Description

Our large range of flanged duckbill check valves are made to order and are available from 50mm to 2400mm in all flange patterns. Typical applications include sewer interceptors, mine tailing systems, pipe outfall, flood mitigation, dredging, wet/dry wells, submerged outfall and scrubber systems. Comes with 316 Stainless Steel backing flange to avoid corrosion and enable saline environments.

The majority of these are made to order so please contact us for price and availability.

· Prevents Backflow

· No mechanical parts

· Will not corrode

· Self Draining which eliminates standing water

· Low Head loss

· Low Cracking Pressure

· Non Slamming silent operation

2. Flanged Duckbill Check Valve Features

Size: 50mm to 2800mm
Body: Neoprene
Models: Flanged Duck Bill Check
Flange: 316 Stainless Steel

3. Flange Duckbill Check Valve Material Options

Ethylene Propylene Rubber
Most effective for applications involving waste or diluted acids.
Viton
Resists solvents, halogenated hydrocarbons,oxygen, weather, ozone, oils and chemicals.
Buna N
Resistant to kerosene, moderate chemicals,fats, oils, grease and many hydrocarbons.
Natural Rubber
Good abrasion resistance, tensile strength and resiliency. Also suitable for applications with organic acids, alcohols, ketones and most moderate chemicals.
Hypalon
Resists strong acids and bases, ozone, weathering, heat and oxidizing chemicals.
Butyl
Good resistance to animal, vegetable fats, strong oxidizing chemicals, oils, heat and greases.
Neoprene
General resistant to oil, grease, moderate chemicals, fats, hydrocarbons, ozone. and barnacle growth

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

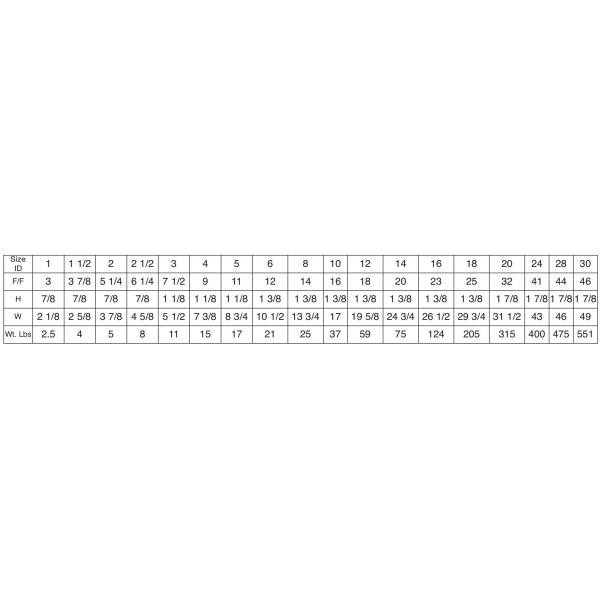

4. Valve Drawing and Datasheet

Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.

COMPANY PROFILE (Video)
floa
1. Our Factory

30 years experience of valve and pipeline industry.
10 senior technical engineers
20000 m2 production area
More than 100 employees to provide professional service.
As the reliable OEM for famous valve brand companies.
t ball valve

2. Factory Show

TONGJIANG Valve Technology Company was established for 30 years.
There are more than 100 employees which includes 10 professional engineers.
Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System

OUR SERVICE float ball valve

Reliable Quality, Competitive Price
Reply your inquiry in 2 hours with professional service.

CONTACT INFORMATION

Miss Angela
Mobile: +86 13588429004(Whatsapp)
Skype: angelazhuo1
E-mail: angela@tjfmcn.com
Tel No: +86 571 86991717
Official Website: www.zjtjvalve.com

Product Tags:

duckbill non return valve

rubber duckbill check valve

Viton Duckbill Check Valve Flange Ends Type For Waste Water And Pipeline System Images
